Beyond Compliance: Evaluating Real-World ESD Flooring Performance

When Confidence Masquerades as Competence

The Dunning–Kruger effect¹ explains how overestimating one’s technical reach can narrow ESD evaluations to the decades-old floor resistance-to-ground (Rtg) test—an essential metric since the 1950s, yet blind to system interactions. Three case studies show that skipping resistance tests of mobile technical elements (casters, chairs, carts) that depend on the floor as a series of paths to ground leads to false confidence and missed risks.

This article advocates pilot floor installations plus insitu body voltage, probability analysis of charge generation data, and mobileelement resistance tests to validate system-level performance and secure long-term staticrisk mitigation.

When the Elements Pass, but the System Fails

In a recent discussion with a cleanroom design team, we encountered a scenario that, while surprisingly common, illustrates a significant gap in understanding.

Their client was offered the chance to conduct an in-house pilot evaluation comparing conductive and dissipative ESD flooring options. However, she declined, reasoning that another division had already selected an appropriate product. She considered her evaluation complete after reviewing supplier literature and performing standard resistance-to-ground and flooring/footwear resistance tests according to
ANSI/ESD STM7.1 and STM97.1.

Notably absent from her evaluation were body voltage measurements required by ANSI/ESD S20.20 and evaluations specified in ANSI/ESD TR53, including seating (Section 7.3.10.1), shelving (Section 7.3.12.1), and mobile workstations (Section 7.3.13.1). These steps are critical for validating the flooring’s effectiveness as the primary grounding path for chairs, shelving units, and mobile workstations, and for comprehensively assessing the system’s real-world performance. Nevertheless, she considered compliance adequately verified and viewed the matter as resolved.

This scenario exemplifies the Dunning–Kruger effect, a cognitive bias wherein individuals with limited expertise significantly overestimate their own understanding. This effect has contributed to numerous well-documented technical and financial failures, including the 2007–2008 Subprime Mortgage Crisis, the Theranos Scandal, the 1986 Challenger Disaster, and fatal programming errors in the mid‑1980s associated with the Therac-25 radiation machine. In each instance, misplaced confidence and incomplete assumptions overshadowed expert analysis, leading to serious, avoidable outcomes.

In the specialized field of static control, such overconfidence poses easily avoided risks. Historically, the role of an ESD coordinator or engineer was a dedicated, full-time position within electronics manufacturing. Today, however, many organizations have integrated these responsibilities into broader quality functions, reducing ESD management to routine compliance checks rather than treating it as a rigorous, proactive discipline. This shift is reflected in declining attendance at critical events like the annual ESD Symposium, despite rising ESD sensitivities in components and increasing associated liabilities.

Commonly, individuals mistake basic achievements, such as completing ANSI/ESD TR53 training or quarterly resistance measurements, as sufficient evidence of expertise in static control. Yet static electricity is a silent threat, causing degradation and damage to sensitive electronics without obvious immediate indicators. As our reliance grows on microelectronics, used to operate aircraft, weapons systems, medical imaging devices, autonomous vehicles, and sophisticated AI technologies, organizations must move beyond superficial testing and incomplete knowledge to effectively manage ESD risks.

Until recently, advancements in microelectronics closely followed the prediction of Intel co-founder Gordon Moore, who forecast that transistor density would approximately double every two years. Despite these significant technological advancements, many organizations continue to rely on outdated practices, insufficient training, and institutional overconfidence in their static control programs. Given the transformative potential of artificial intelligence and autonomous technologies, organizations cannot afford simplistic approaches to adequately protect the sophisticated electronics upon which these innovations depend.

Today, ESD flooring is broadly adopted in diverse mission-critical environments far beyond traditional electronics and aerospace sectors, including SCIFs, data centers, MRI suites, air traffic control towers, operational control rooms, and emergency dispatch facilities. Given this widespread adoption, one might reasonably assume technical specifications for ESD flooring have grown more rigorous. However, the opposite often occurs.

Many professionals responsible for specifying ESD flooring still lack clarity on fundamental distinctions between conductive, dissipative, and antistatic classifications. For instance, during a recent meeting at a multinational architectural firm, a senior industry leader mistakenly stated that his project did not require ESD-grade flooring, proposing that a “dissipative” solution would suffice. This individual was unaware that dissipative flooring is, in fact, a specific subset within the broader category of ESD flooring. Such misconceptions underscore the critical need for thorough, technically accurate guidance when specifying static control solutions.

Misplaced Priorities: When Initial Questions Miss the Mark

In our extensive experience working alongside architects, designers, engineers, general contractors, and facilities teams, we have observed a consistent pattern in initial inquiries when specifying and evaluating ESD flooring. Regardless of the project’s scale or application, initial questions typically focus on the following aspects:

1. What is the cost per square foot of the flooring?
2. Is the flooring conductive or dissipative?
3. Will the flooring require waxing or polishing?
4. What colors are available?

While these initial questions are practical and understandable, focusing primarily on cost, color, or general categories such as conductive versus dissipative often leads to significant oversights. These early inquiries frequently neglect more critical technical and operational considerations, resulting in unforeseen challenges and expenses later in the project.

The actual complexity and total cost associated with effectively implementing ESD flooring extend far beyond initial material pricing and aesthetic preferences. Crucial considerations that are often overlooked include:

• Concrete moisture emission testing and site-specific preparation requirements.
• Failing to distinguish between point and distributed loads of existing mobile equipment.²
• Specific aesthetic and uniformity standards for the installation environment.
• Sensitivity levels of the ESD-sensitive devices and equipment handled in the area.
• Installation logistics, such as whether operations can continue during installation or if downtime is required.
• The flooring’s practical ability to effectively ground mobile equipment like carts, chairs, and shelving units, which previously required dedicated grounding methods.
• Anticipated occupancy duration and maintenance requirements for the facility.

Ted Dangelmayer, a recognized expert in ESD control, consistently emphasizes approaching static control as an integrated system. In a recent conversation, he told me that “In addition to TR53 auditing, you need a strategic sampling audit of all the elements of the program, including the system, in order to evaluate the quality of the overall system.”

Therefore, a recommended and practical approach is to conduct a pilot installation and subject it to a rigorous, real-world audit. This pilot installation should replicate actual operating conditions, including rolling chairs, moving equipment, realistic point loads, and typical maintenance activities, to identify potential issues not evident during standard product evaluations or vendor demonstrations. Careful observation and thorough auditing of this pilot setup can proactively uncover hidden factors, thereby enabling informed decision-making and ensuring that the selected flooring solution genuinely fulfills the facility’s operational and technical requirements.

Lessons Learned from Audits: Why One Test Subject is Never Enough

Ron Gibson from Advanced Static Control Consulting (ASCC) critically assessed the reliability of the widely used ANSI/ESD STM97.2 body voltage walking test in a factory located in the Pacific Rim. Typically, compliance evaluations involve a single test subject performing three walking cycles, measuring only peak voltages. If the average peak voltages remain below 100 volts, the flooring-footwear combination is deemed compliant under ANSI/ESD S20.20 standards for Human Body Model (HBM) protection.

Table 1: Charge generation results based on single subject 3 peak voltage analysis

Gibson’s thorough analysis highlighted significant limitations of this commonly accepted approach. He initially tested seven individuals, all wearing identical ESD footwear, walking on the same conductive vinyl flooring within a factory environment at normal relative humidity (approximately 30-50%). When analyzing this data using only peak voltage averages (as per the standard), the results suggested general compliance.

However, upon further statistical analysis that involved applying a rigorous three-sigma method to the entire voltage waveform data rather than peak voltages alone, the risks appeared considerably greater.

Specifically, Gibson’s comprehensive statistical review identified significant variability among subjects:

• Three individuals demonstrated a high probability of exceeding the 100-volt threshold, indicating clear non-compliance concerns.
• Two individuals showed probable voltages close to the threshold, providing minimal margin.
• Only two individuals presented a high probability of voltage generation below 100 volts.

Table 2: Probabilistic charge generation analysis of peak voltages across multiple test subjects

The critical distinction emerged when Gibson shifted from traditional peak-voltage analysis to full‑waveform analysis with a three-sigma calculation. By calculating the mean voltage and standard deviation from the complete data set and adding three standard deviations to this mean, he effectively quantified a realistic worst-case scenario. This thorough statistical approach clearly illustrated that actual body voltages could significantly exceed values derived from simple peak-voltage measurements, increasing the potential for damaging ESD events.

Table 3: Probabilistic charge generation analysis of entire voltage curve across multiple test subjects

Moreover, this risk assessment remains conservative since Gibson’s data was collected under typical factory humidity conditions (around 30-50%). Had the tests been performed under the lower relative humidity conditions (e.g., 12% RH) used in standard STM 97.2 qualification tests, the resulting voltages likely would have been significantly higher, amplifying the risk even further. Additionally, the inherent subjectivity of the walking test, including variability arising from individual electrical capacitance, hydration levels, foot size, footwear types, walking style, speed, and body movements, introduces further uncertainty and underscores the inadequacy of relying on a single-subject evaluation.

Earlier research by Jeremy Smallwood and David Swenson (2011) strongly supports Gibson’s conclusions. In their study “Evaluation of performance of footwear and flooring systems in combination with personnel using voltage probability analysis,”³ Smallwood and Swenson explicitly noted that traditional methods focusing only on peak voltage measurements fail to adequately evaluate the likelihood of exceeding critical voltage thresholds. They recommended comprehensive waveform analysis involving multiple test subjects to quantify operational risks accurately. This judgment is particularly vital, recognizing that in environments such as control rooms and flight towers, ESD protection is fundamentally a task of risk prevention and management.

Together, these findings underscore the importance of adopting comprehensive testing methodologies for effective ESD protection. Organizations must move beyond simplistic or limited peak-voltage measurements and implement full waveform testing coupled with rigorous statistical analysis. Ideally, this should include pilot installations conducted under realistic operational conditions, using actual equipment, chairs, carts, and multiple personnel. Evaluating flooring in situ provides the most reliable insight into real-world performance, ensuring robust and effective static control throughout the facility.

Still Tethering: When Conductive Flooring Doesn’t Ensure True Mobility

In principle, installing conductive ESD flooring should eliminate the need for tethered wrist straps during standing or walking activities and remove the necessity for grounding wires attached to mobile equipment. Yet many facilities find themselves continuing to tether carts, chairs, and mobile workstations even after installing flooring that meets standard compliance criteria. Why does this situation persist?

Post-installation audits frequently reveal that the anticipated mobility benefits of compliant flooring are not realized, not due to a lack of inherent floor conductivity, but because mobile equipment cannot reliably maintain electrical contact with the floor’s conductive surface.

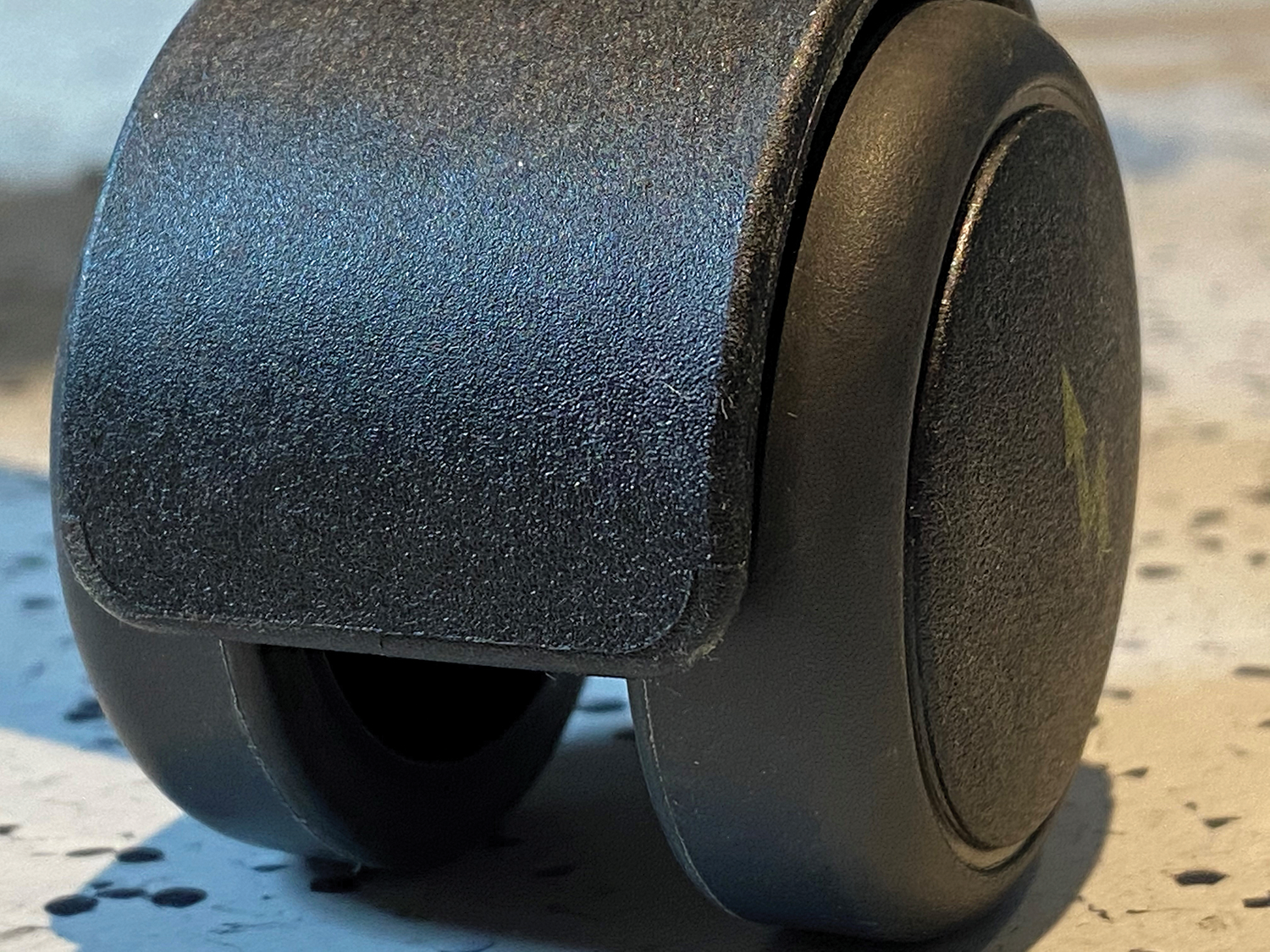

Sometimes the root cause is attributed to faulty grounding components, such as ineffective drag chains, inappropriate casters, or shelving sleeves that electrically isolate shelves from their posts. However, in most instances, the underlying issue lies with the flooring itself. For example, certain Generation 2 epoxy coatings incorporate a conductive layer beneath the surface but lack sufficient surface-level conductivity. Similarly, poorly designed conductive tiles with inadequate or unevenly distributed conductive granules compromise the effectiveness of grounding performance.

In a previous article⁴, we examined this critical yet frequently overlooked gap in standard compliance practices. Specifically, we challenged the common assumption that successfully passing the ANSI/ESD STM7.1 resistance-to-ground test automatically ensures compliance with all other ANSI/ESD S20.20 resistance criteria. However, this assumption is fundamentally flawed. In our case study, we demonstrated a notable 16% failure rate when measuring resistance from carts to ground, even though the measurements were taken on flooring previously verified as conductive according to STM7.1.

The ANSI/ESD STM7.1 standard evaluates a floor’s conductivity using a controlled laboratory scenario, a five pound probe with a 2.5 inch diameter (4.91” area). In real-world operations, however, mobile objects like carts, chairs, shelves, and equipment racks often make contact with the floor through significantly smaller surfaces, such as the thin outer edge of a caster or a small metal leveling foot. A typical five caster chair probably makes less than one square inch of total contact.

As detailed in [4], passing the STM7.1 compliance test confirms general floor conductivity but does not guarantee effective grounding or bonding in practical conditions. True grounding performance depends entirely on whether these small, real-world contact points consistently engage conductive elements within the flooring material. If casters or leveling feet rest on insulative fillers, non-conductive surface textures, or gaps between conductive granules, the equipment remains electrically isolated, regardless of nominal compliance on paper.

The practical consequence of this oversight is that casters, shelves, and similar mobile equipment effectively become electrically isolated, or “floating,” unable to dissipate static charges reliably. This scenario leaves operators susceptible to static shocks, exposes sensitive electronic components to damage, and negates the anticipated advantages of mobile grounding.

This issue arises frequently because many engineers and facility managers evaluating ESD flooring for the first time may inadvertently overlook critical supplementary requirements, such as those outlined in ANSI/ESD STM4.1. Typically, these problems only come to light during detailed audits or after operational failures linked to static discharge events occur.

To ensure robust static control under realistic operating conditions, specifiers must look beyond basic resistance compliance tests. A thorough and effective evaluation of ESD flooring should involve:

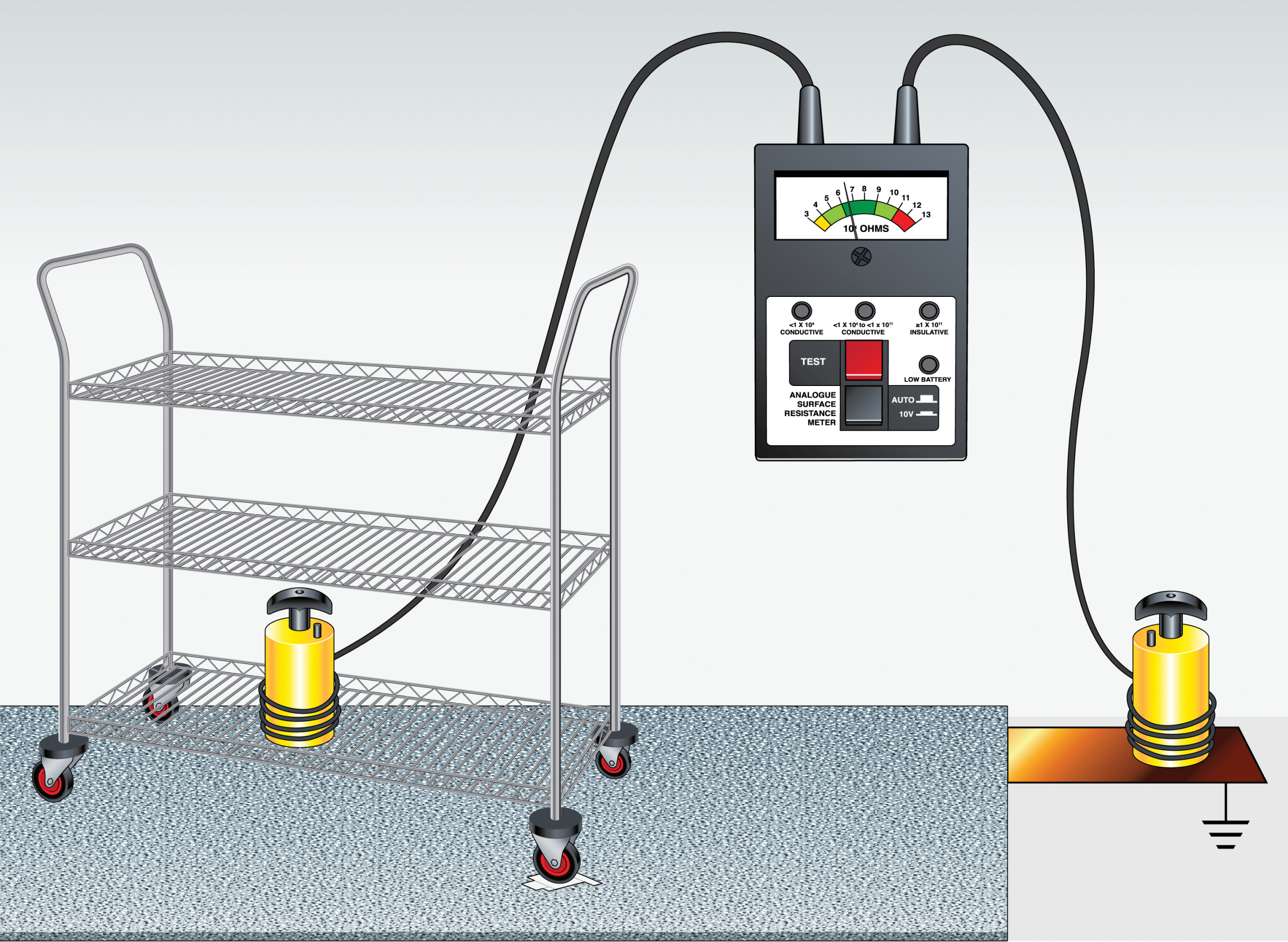

• Testing mobile equipment, including carts, chairs, and shelving, under realistic operational loads.
• Verifying electrical continuity, specifically at caster-to-floor and leveling foot-to-floor interfaces.
• Carefully examining the flooring’s surface construction to confirm consistent and reliable conductive pathways.
• Conducting body voltage and charge decay tests to evaluate real-world static dissipation performance comprehensively.

In summary, effective static control demands more than simply meeting isolated resistance compliance tests. Conducting a carefully planned pilot installation and performing a rigorous, system-level evaluation under actual operational conditions can proactively identify grounding issues before full-scale deployment. Such real-world testing ensures reliable grounding performance for all types of equipment, both mobile and stationary, and provides genuine, comprehensive protection for sensitive electronics. A pilot approach thus helps organizations avoid the common pitfalls associated with relying solely on isolated compliance data or superficial testing methods.

When Redundancy Fails: Ensuring System-Level Reliability in ESD Control

In strictly controlled manufacturing environments, adherence to static control protocols, including the consistent use of heel straps, wrist straps, personnel grounding verification, and comprehensive system grounding methods, is typically rigorous, regularly audited, and well documented. However, in critical settings such as SCIFs, research labs, data centers, and academic facilities, static control measures often become self-regulated, inconsistently applied, or overlooked, potentially introducing significant unnoticed vulnerabilities.

To counteract these deficiencies, some facilities implement passive redundancy measures, such as using conductive flooring combined with static control seating. But does this redundancy reliably achieve effective ESD protection?

A recent internal audit conducted at a semiconductor laboratory highlighted inherent risks associated with relying on passive grounding strategies, even when redundancy appeared sufficient on paper. In this instance, an engineer proactively installed a pilot area consisting of interlocking conductive flooring paired with conductive ESD chairs featuring metal casters. The flooring used was notable for its relatively low surface density of conductive granules.

According to supplier test reports, the flooring met ANSI/ESD S20.20 compliance criteria based on ANSI/ESD STM7.1 resistance-to-ground and ANSI/ESD STM97.2 body voltage measurements. The ESD chairs individually passed ANSI/ESD STM12.1 resistance tests, verifying their individual compliance.

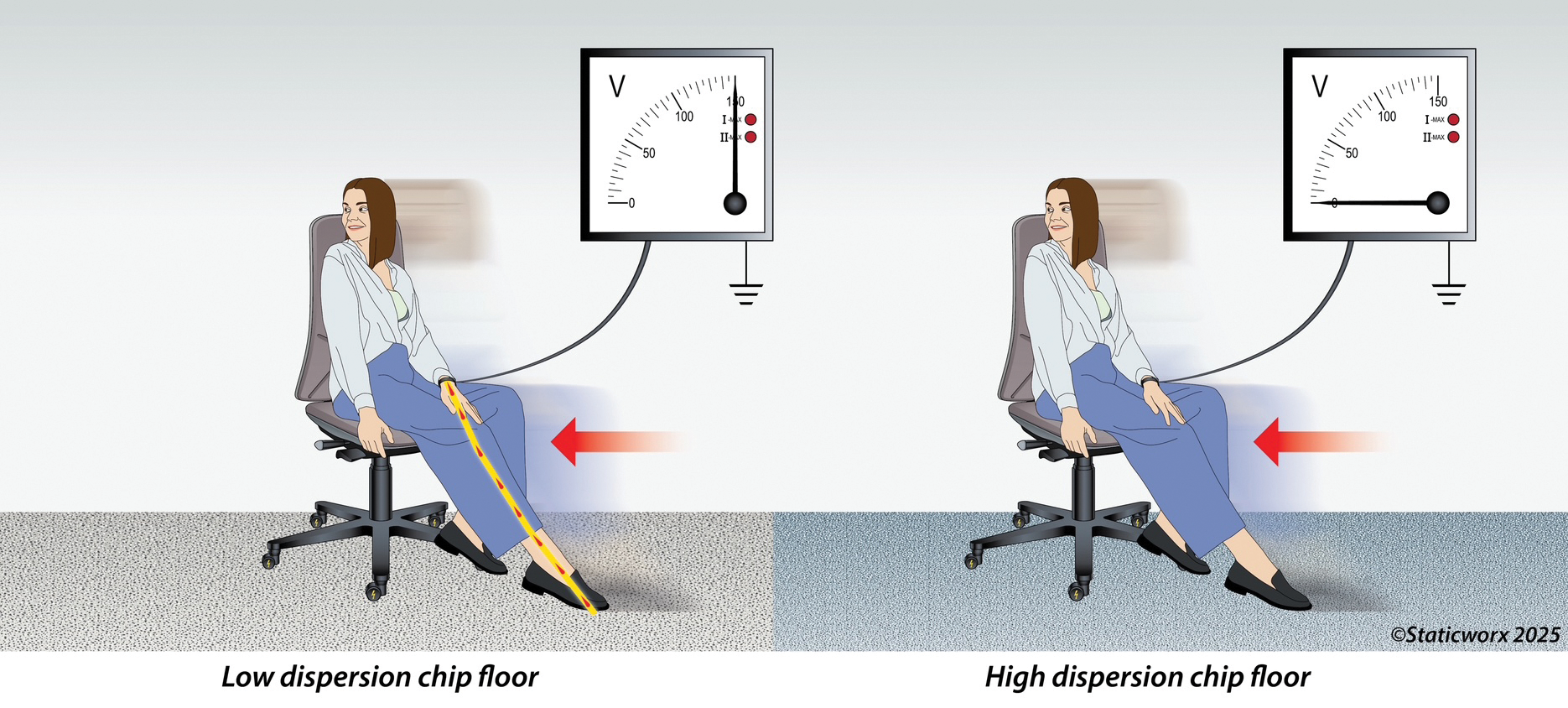

However, when tested as an integrated system, with chairs grounded through caster contact with the conductive flooring, the performance deteriorated significantly. Resistance measurements between the chair casters and the floor frequently exceeded the ANSI/ESD S20.20 threshold of <1.0 × 10⁹ ohms. Real-world testing using a portable charge plate monitor, where the engineer moved around in an ESD chair without supplementary grounding methods such as wrist straps or ESD footwear, revealed body voltage levels ranging dramatically from approximately -188 volts to +142 volts, significantly surpassing acceptable thresholds. This has critical implications for environments like SCIFs and data centers, where additional static control measures may not be practical or enforceable.

To explore the issue further, the engineer replaced a small pilot area of the low-density conductive flooring with an alternative interlocking floor system featuring a higher dispersion and density of conductive surface granules. Repeating the same tests under identical conditions yielded dramatically improved results:

• On the original low-density flooring, resistance from chair to ground varied significantly, from acceptable levels (~10⁶ ohms) to highly non-compliant values (~10¹¹ ohms).
• Corresponding body voltage readings were unacceptably high, ranging from -188 volts to +142 volts.
• On the replacement flooring with higher conductive granule density, resistance measurements stabilized consistently below 1.2 × 10⁶ ohms, and body voltage readings remained near zero volts.

This practical evaluation underscores several crucial insights:

1. ESD flooring does not operate in isolation: It serves as the critical grounding interface for chairs, carts, shelves, and all mobile equipment.
2. Compliance of individual components alone does not ensure reliable system-level performance:Interfaces between components—such as the contact between casters and conductive flooring elements—are critical.
3. Passing basic resistance tests (ANSI/ESD STM7.1) alone is insufficient:Effective grounding performance in real-world scenarios relies on the actual, consistent contact between small contact points (e.g., caster wheels) and conductive granules on the floor surface.
4. Without enforced additional grounding methods like wrist straps or footwear, the flooring becomes the sole grounding mechanism, significantly increasing dependence on its functional effectiveness.

The engineer’s proactive installation of a carefully monitored pilot area emphasizes the importance of rigorous, real-world testing in identifying and resolving system-level issues. This strategic approach allowed early identification of integration problems, clearly differentiating compliance on paper from genuine operational reliability. By conducting this pilot, the engineer pinpointed the weakest link in the ESD control system, enabling the implementation of a highly effective passive static control solution. This solution successfully mitigated compliance issues typically associated with inconsistent use of wrist straps and ESD footwear.

Drawing from physicist Richard Feynman’s insights, true understanding of any system involves the capacity to clearly and simply articulate how each component integrates into the overall system. Merely confirming compliance through isolated tests or technical datasheets is insufficient. Instead, organizations must rigorously test pilot installations under realistic operating conditions, involving actual chairs, carts, material-handling equipment, and realistic daily operational activities. Such proactive validation uncovers critical issues that isolated compliance tests alone might miss.

Aligned with industry best practices, a comprehensive evaluation beyond basic compliance standards is essential. Organizations must move beyond simply asking, “Does the flooring meet the standard?” to more crucial questions such as, “Does it perform reliably in our environment, with our actual equipment, under realistic operational conditions?” By adopting this rigorous and holistic approach, organizations ensure robust static control reliability, effectively safeguarding sensitive electronic components from unintended risks and vulnerabilities.

Endnotes

1. Justin Kruger and David Dunning, “Unskilled and Unaware of It: How Difficulties in Recognizing One’s Own Incompetence Lead to Inflated Self-Assessments,” Journal of Personality and Social Psychology, 1999, Vol. 77, No. 6, pp. 1121-1134.
2. Jordan Tlumak, “Point Load vs. Distributed Load,” OneRack website, May 27, 2024.
3. Jeremy Smallwood and David E. Swenson, “Evaluation of performance of footwear and flooring systems in combination with personnel using voltage probability analysis,” Journal of Physics: Conference Series, 301 012064.
4. David Long, “Caster Contact: The Achilles Heel of ESD Floors,” In Compliance Magazine, September 2021.
